C11000 Electrolytic Tough Pitch (ETP) Copper

PRODUCTS

< >

Standards: ASTM B-187, ASTM B-124, ASTM B-133, SAE 461, SAE J461, SAE J463, AMS 4500, DIN 2.0065

FREE GET QUOTE

Description:

C11000 Electrolytic Tough Pitch (ETP) Copper is known for its high electrical and thermal conductivity, good corrosion resistance and solderability. C11000 copper is used for welding fixtures, anodes, bus bar in electrical power installations, ground straps, commutators and current-carrying hardware. Its inherent fabrication qualities readily permit it to be bent, soldered, drilled, peened, riveted and formed to fit almost any design specification. This copper has excellent hot workability.

Sizes Available

RECTANGLES / FLAT BAR . . . 1/8" - 2" thick through 1/2" - 8" wide

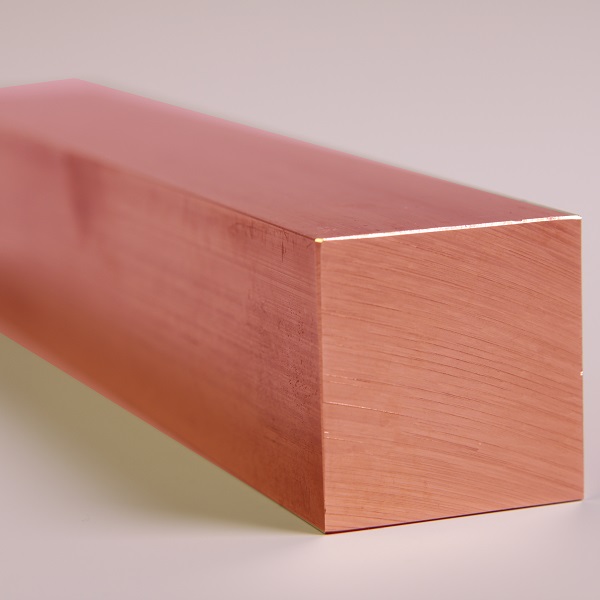

SQUARE BAR . . . . . . . . . 1/4" - 4" square

ROUND BAR . . . . . . . . . . 3/16" - 15" diameter

BUS TUBES . . . . . . . . . . . cut to size, up to 6" O.D.

SHEETS (COLD ROLLED) . . . up to 1/4" thick max

PLATES (HOT ROLLED) . . . . cut to size, up to 6" thick

C11000 Copper Alloy Specifications

End Product	Specification
Bands, Projectile Rotating	MILITARY MIL-B-20292
Bar	ASME SB133, ASTM B152, SAE J461, J463
Bar, Bus	ASTM B187
Bar, Forging	ASTM B124
Bolts	ASTM F468
Brazing Filler Metal	FEDERAL QQ-B-650
Foil, Printed Circuits	ASTM B451
For, Forging	ASTM B124
Forgings, Die	ASTM B283
Nuts	ASTM F467
Pipe, Bus	ASTM B188
Plate	AMS 4500, ASTM B152, SAE J461, J463
Rod	ASME SB133, MILITARY MIL-C-12166, SAE J461, J463
Rod, Bus	ASTM B187
Screws	ASTM F468
Shapes	SAE J461, J463
Shapes, Bus	ASTM B187
Shapes, Forging	ASTM B124
Sheet	AMS 4500, ASTM B152, B694, SAE J463, J461
Sheet, Building Construction	ASTM B370
Sheet, Clad	ASTM B506
Sheet, Lead Coated	ASTM B101
Sheet, Printed Circuits	ASTM B451
Strip	AMS 4500, ASTM B694, B152, SAE J463, J461
Strip, Building Construction	ASTM B370
Strip, Clad	ASTM B506
Strip, Printed Circuits	ASTM B451
Studs	ASTM F468
Tube, Bus	ASTM B188
Tube, Welded	ASTM B447
Wire, Coated With Lead Alloy	ASTM B189
Wire, Coated With Nickel	ASTM B355
Wire, Coated With Silver	ASTM B298
Wire, Coated With Tin	ASTM B246, B33
Wire, Flat	AMS 4500, ASTM B272
Wire, Hard Drawn	ASTM B1, FEDERAL QQ-W-343
Wire, Medium-Hard Drawn	ASTM B2, FEDERAL QQ-W-343
Wire, Metallizing	MILITARY MIL-W-6712
Wire, Soft	ASTM B3, B738, B48, FEDERAL QQ-W-343, SAE J461, J463
Wire, Stranded	ASTM B8, B496, B470, B286, B229, B226, B174, B173, B172, FEDERAL QQ-B-575
Wire, Trolley	ASTM B47, B116

*
*
