C17510 Copper

ASTM B441 (ROD), ASTM B534 (PLATE) , RWMA Class III

C17510 Beryllium Copper is an alloy used primarily in applications that require high thermal or electric conductivity. The alloy offers good strength and hardness characteristics coupled with conductivity in the range of 45-60 percent of copper with ultimate tensile and hardness properties approaching 140 ksi and RB 100 respectively.

Typical Uses for C17510 Beryllium Copper:

ELECTRICAL: Instrument Parts, Connectors, Heavy Duty, Relay Parts, Conductors, Switch Parts, Fuse Clips

FASTENERS: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts

INDUSTRIAL: High Flux Electromagnets, Thermal Transfer Plates, Welding Equipment, Springs, Die Casting Plunger Tips

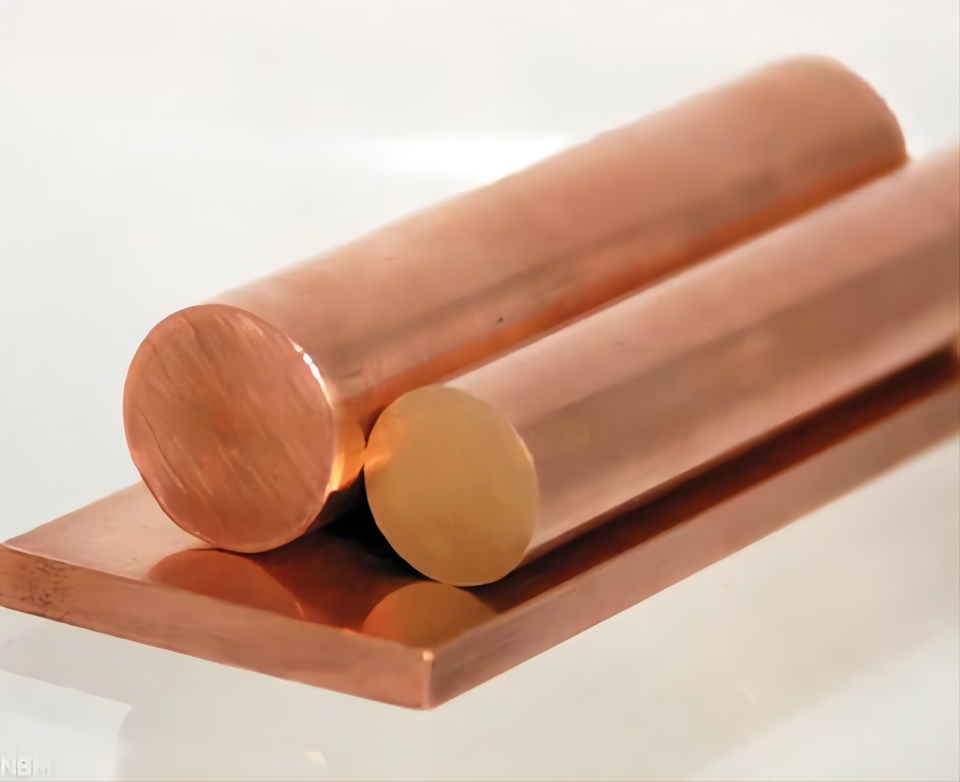

Sizes Available From NBM

SOLID BAR: 1/4" . 6" diameter

RECTANGLES: 3/8" x 1/2" . 1" x 3" thickness x width

SQUARES: 3/8" . 3" square

PLATES: 2" . 5" thickness

DISCS & RINGS: forged to size

HONED TUBES: up to 4" OD
