C70600 Copper Nickel (90/10)

Equivalencies Copper Nickel (90/10) tube/pipe:

KS D5301 JIS H3300	C7060T
ASTM B111	C70600
ASTM B466	C70600
BS2871 {PART2}	CN102
AS1752	C70600
DIN17664	CuNi10Fe 1Mn
DIN 86019 WL2.1972	CuNi10Fe 1.6Mn
EEMUA 144	7060X
MIL-T-16420K	706
EN12449	CW352H



Typical Uses for C706 Copper Nickel "90/10":

AUTOMOTIVE: Power Steering Tube, Brake Lines

CONSUMER: Screw Lamp Bases

INDUSTRIAL: Condenser Plates, Condensers, Weld Torch Tips, Heat Exchanger Tubes, Valve Bodies, Evaporator Tubes, Pressure Vessels, Distiller Tubes, Pump Impellers for Oil Refining, Ferrules, Evaporators

MARINE: Boat Hulls, Tube Sheet for Salt Water Service, Salt Water Pipe Fittings, Salt Water Piping Systems, Salt Water Piling Wrap, Hot Water Tanks, Salt Water Baffles, Propeller Sleeves, Ship Hulls, Water Hoses

PLUMBING: Flanges

Sizes Available From Aviva Metals

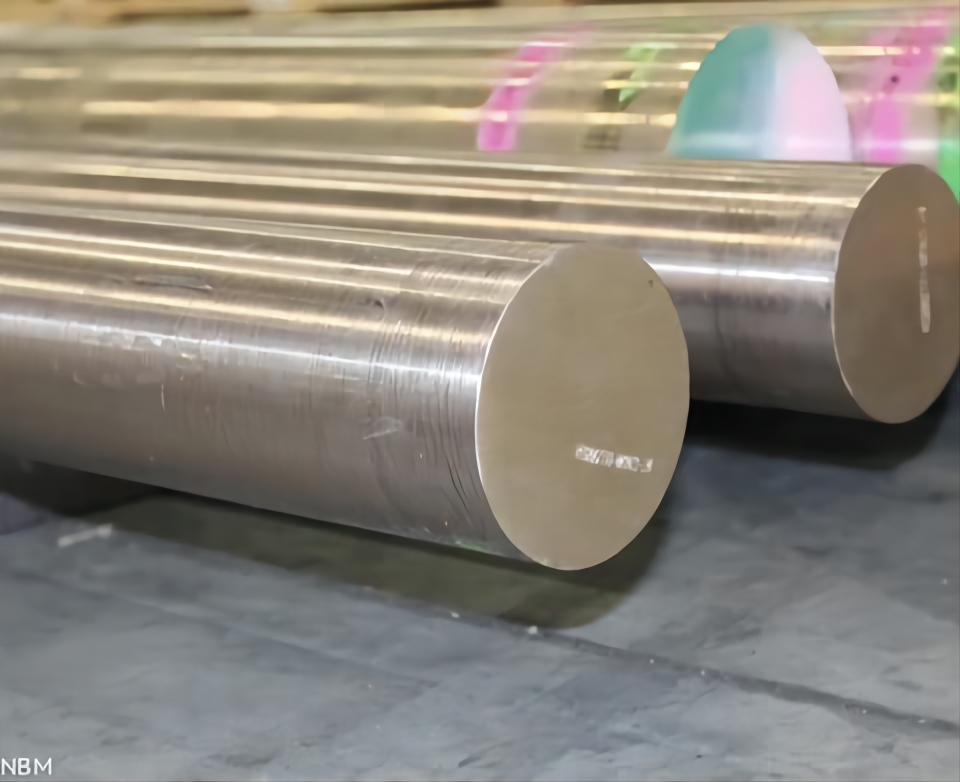

SOLID BAR: 1/4" - 12" diameter

PLATE: up to 6" thick

C70600 Copper Nickel Specifications

End Product	Specification
Bar	ASTM B151, B122, MILITARY MIL-C-15726
Pipe, Seamless	ASME SB466, ASTM B466
Pipe, Welded	ASME SB467, ASTM B608, B467
Plate	ASTM B122, MILITARY MIL-C-15726
Plate, Clad	ASTM B432
Plate, Condenser Tube	ASME SB171, ASTM B171, SAE J463, J461
Rod	ASTM B151, MILITARY MIL-C-15726
Rod, Welding	AWS A5.15
Sheet	ASTM B122, MILITARY MIL-C-15726, SAE J463, J461
Strip	ASTM B122, MILITARY MIL-C-15726
Tube, Condenser	ASME SB111, ASTM B552, B111, MILITARY MIL-T-15005, SAE J463, J461
